Bresser Science TFM-301 Trino mikroszkóp

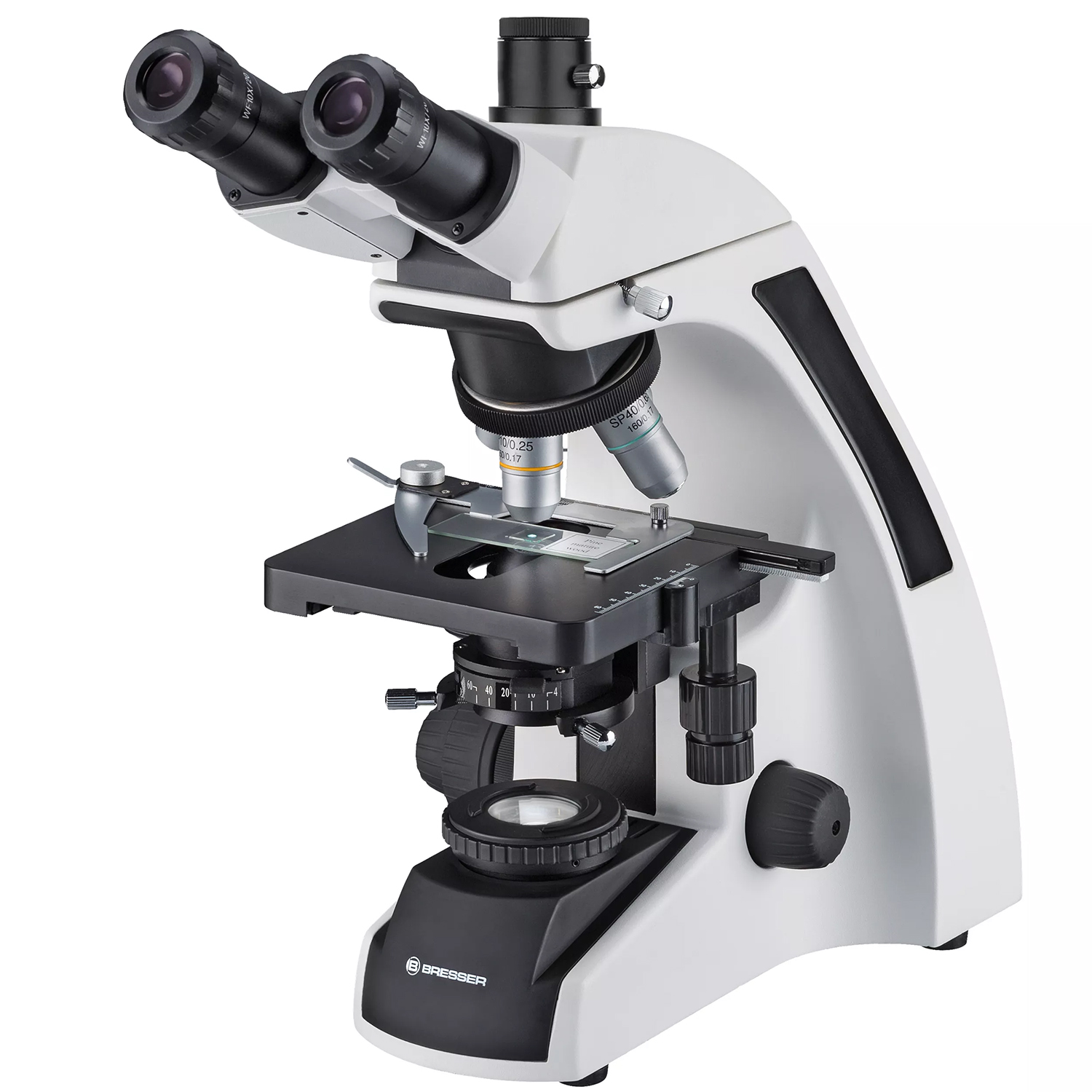

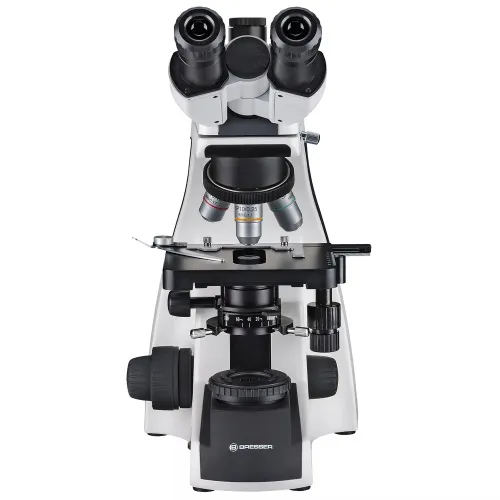

The new Bresser Science TFM-301 is a trinocular microsscope, which is equipped with semiplan objectives. In addition to the binocular viewing pictures can also be made via the trinocular tube with C mount thread. The WF 10x eyepieces offer a large visual field of 20mm. The interpupillary distance can be adjusted from ca. 55mm to 75mm. Dioptre adjustments are possible with both eyepieces.

The Köhler illumination is regulable with the built-in luminous-field diaphragm and the vertically and horizontally adjustable Abbe condenser (numerical aperture 1.25, with iris diaphragm). An imprint of the different possible magnifications on the condenser makes the adjustment of the iris diaphragm very fast and precise.

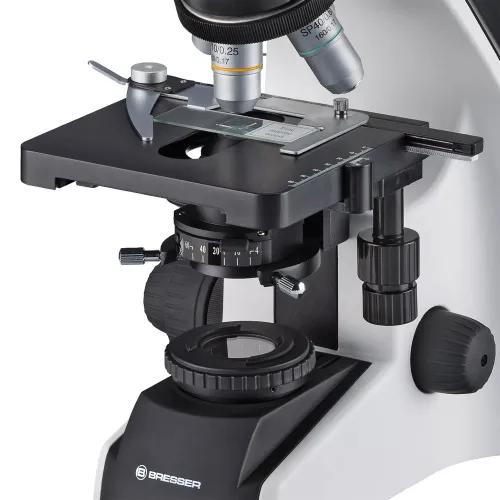

Coaxial pinions drive the stage and focus which enables ergonomic operation of the microscope.

The trinocular tube enables the direct attachment of a c-mount camera or MikroCam.

The kit includes:

• Microscope with integrated LED illumination
• Semiplan objectives (4x, 10x, 40x, 100x oil)
• 2x eyepieces (WF 10x)
• Mains adapter
• Mains adapter
• Manual
• Immersion oil
• Dust cover
